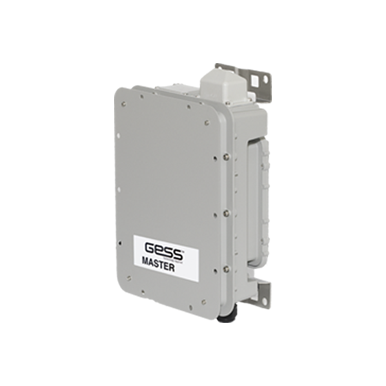

Master Unit / USB Converter

Home > 制御システム > Products > Master Unit / USB Converter

This device transmits the control command of the GUI operation program to the slave unit using a wired  RS-485 & DMX512 signal

  • For wired communications, the master unit can monitor and control a maximum of 32 slave units.
  • For wireless communications, the master unit can monitor and control a maximum of 200 lighting fixtures.
  • USB Converter the received control command is converted into a RS-485 communication signal and transmitted to the master unit

Application

Industrial high bay, Sports Lighting, High mast, Flood Lighting, Port

Certifications

UL, FCC

Specifications

Item

Description

Model Name

Master-C/W / USB Converter

Power Consumption

MAX. 3.0W

Communication Method

Rs-485 / Zigbee / DMX512

Data Rate

115,200(RS-485) / 250kbps (Zigbee)

Input Voltage

100 ~ 240Vac / 100 ~ 277Vac

Dimension

331 x 209 x 140 (mm)

13.0 x 8.2 x 5.5 (inch)

Weight (Driver excluded)

8.4 lb

3.8 kg

Operation Temp.

-30ºC ~ 50ºC  / -10ºC ~ 40ºC
